Architectural Design for PIML

This section presents an overview of the Recurrent Neural Networks (RNN) and Neural Ordinary Differential Equations (NODE) variants examined at the architectural level. The rationale for the selection of each variant is subsequently discussed, followed by a comparative evaluation of their performance. The most suitable architectures for RNN and NODE are then identified and adopted for further development in Section 5, “Physics-Guided Enhancements”. The architectural variants are considered in Table 4.1.

RNN is selected as a basecase due to its well-established capability as a purely-data driven model in predicting temporal dependencies in sequential data. In contrast, NODE is selected as another basecase because it offers a continuous-time formulation of system dynamics that aligns naturally with the governing differential equations of the underlying physical processes, making it particularly suitable for physical incorporation.

The studies that have explored physics-informed RNN applications in chemical engineering applications within PIML to date are summarised in Table 4.2, with no reported applications in chemisorption systems.

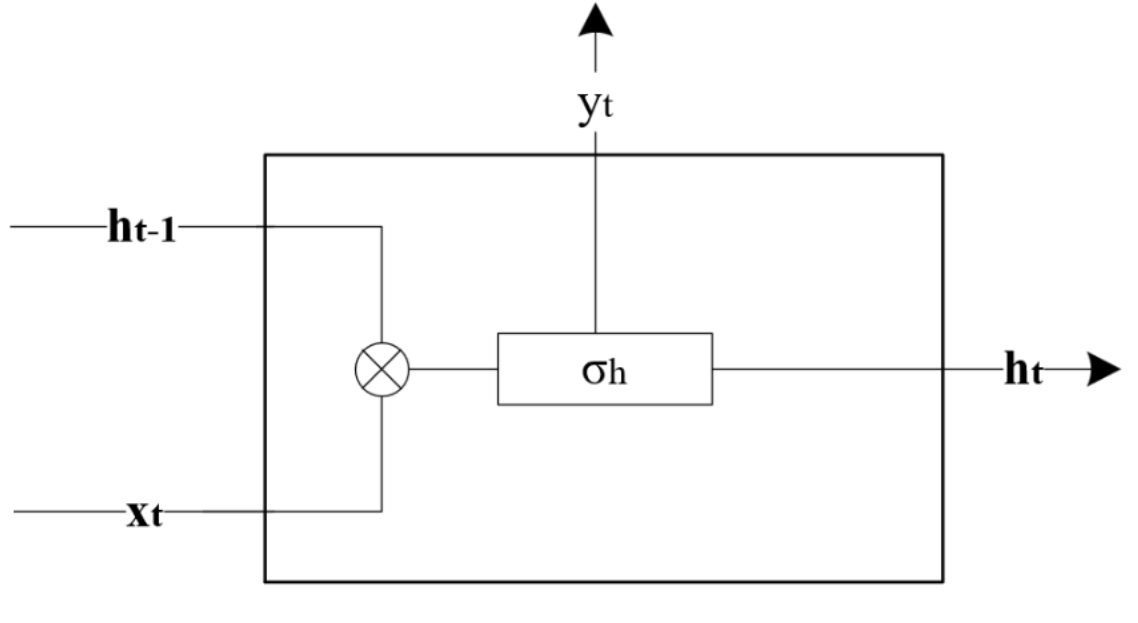

RNN are designed to process sequential data by maintaining a hidden state that captures information about previous inputs³⁴. In contrast to a standard feedforward neural network, RNN has an additional recurrent connection as displayed in Figure 4.2, which enables the previous time step information to pass through the current time-step throughout the network until the last hidden layer. At every time step, t , the RNN takes an input vector, x_t , and updates its hidden state, h_t , to predict an output in the following manner with the variables defined in Table 4.3:

In our implementation, the inputs for the RNN models can be found in Table 4.4 below.

The following inputs were chosen to allow the RNN to model the trajectory of CO₂ and NaOH at the discrete measured timestamps, namely: t = 4 , 8 , 12 , 16 min. The initial concentration of both CO₂ and NaOH at the inlet of the column reflects each reactant's concentration after the step change was introduced, while the concentration of CO₂ and NaOH at the outlet of the column refers to the outlet concentration of the column prior to the step change.

RNN was considered due to the relatively short sequence length, t = 4, 8, 12, 16 mins. The exploding and vanishing gradient problem, typically associated with long time-horizon sequences, arises when weights propagated through recurrent steps either grow exponentially or decay towards zero, leading to training instability and impaired model convergence. Given the limited number of temporal steps in the present dataset, the impact of such gradient-related issues is unlikely to propagate within the model. As such, it is hypothesised that a simple RNN architecture is sufficient to capture the underlying temporal dynamics of the system without significant instability.

However, despite the limited sequence length, transient unsteady-state behaviour in chemical processes, where later states such as t = 16 min are highly dependent on earlier states such as 4, 8, 12 mins. As such, it is hypothesised that minor inaccuracies in the gradient propagation may adversely affect the model's ability to capture the system dynamics. Therefore more advanced architectures such as GRU and LSTM were also explored to handle the temporal dependencies.

4.2.1

Gated Recurrent Units

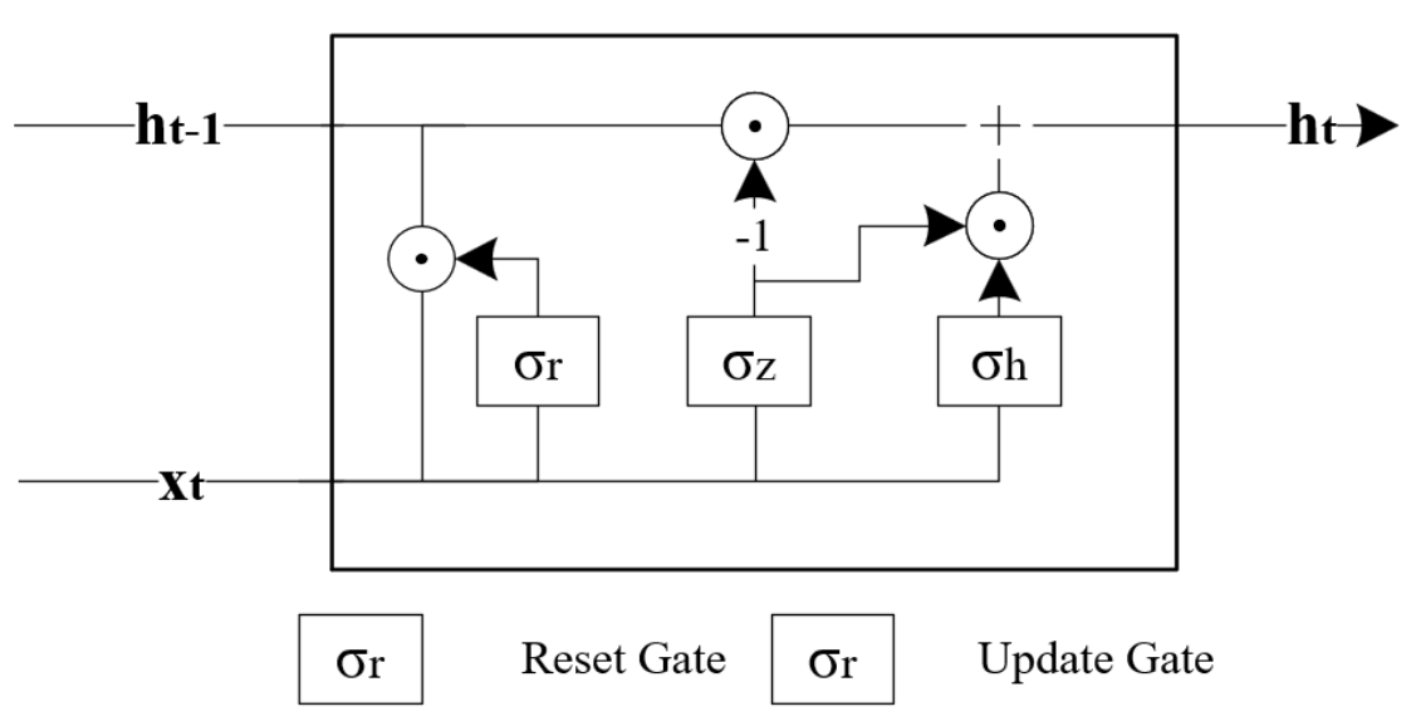

Similar to RNNs, Gated Recurrent Units (GRU) have also been applied successfully for applications involving sequential or temporal data ³⁵. For example, Avula et al. (2024)³⁶ developed a GRU model to predict the production of oil from oil wells. However, the way that GRU achieves sequential or temporal modelling is slightly different from RNNs as it contains two additional parameters: an update gate, z_t , and a reset gate, r_t . In contrast to RNNs, these gates enable GRU to selectively control how the present input and previous state is used to update the current activation function and thus to produce the current state. These gates have their own sets of weights and are adaptively updated during the training phase. The GRU model is then formulated as follows and the variables are defined in Table 4.5:

h_t = (1 - z_t) ⊙ h_t-1 + z_t ⊙ h̄_t

h̄_t = g(W_h x_t + U_h (r_t ⊙ h_t-1) + b_h)

With the two gates formulated as:

z_t = σ(W_z x_t + U_z h_t-1 + b_z )

r_t = σ(W_r x_t + U_r h_t-1 + b_r )

Variable	Description	Variable	Description
ht	Hidden state at time t	Wr	Input weight matrix between reset gates
ht-1	Hidden state at time t-1	Uh	Recurrent weight matrix between t and t-1
ht	Candidate hidden state	Uz	Recurrent weight matrix between update gates
xt	Input at time t	Ur	Recurrent weight matrix between reset gates
zt	Update gate vector	bh	Bias vector for hidden layer
rt	Reset gate vector	bz	Bias vector for update gates
Wh	Input weight matrix between t and t-1	br	Bias vector for reset gates
Wz	Input weight matrix between update gates	σ	Sigmoid activation function
		g	Hyperbolic activation function

In this implementation, the GRU model was provided with the same four inputs as the RNN and tasked with modelling the outlet concentrations of CO₂ and NaOH at t = 4, 8, 12 and 16 min.

While the inclusion of the update and reset gates enables the GRU to minimise the propagation of minor inaccuracies as suffered in RNN, it comes at the cost of increased parametrisation. Given the number of data points collected was only 30, these additional parameterisation may hinder the GRU's performance rather than improve it due to overfitting.

4.2.2

Long Short Term Memory

Instead of just two gates to control how present and previous state are used to predict the hidden state, Long Short-Term Memory (LSTM) models also utilise an internal memory cell known as the state, c_t , and add it in an element-wise weighted-sum to the previous value of the internal memory state, c_t-1 , to finally produce the current memory state, c_t . The current memory state is then used to compute the hidden state at time t with the help of the following gates: input, output and forget. The LSTM model is then formulated as follows and the variables are defined in Table 4.6.

c_t = f_t ⊙ c_t-1 + i_t ⊙ c_t

c_t = g(W_c + U_c h_t-1 + b_c )

h_t = o_t ⊙ g(c_t)

With the three gates formulated as:

i_t = σ(W_i x_t + U_i h_t-1 + b_i)

f_t = σ(W_f x_t + U_f h_t-1 + b_f)

o_t = σ(W_o x_t + U_oh_t-1 + b_o)

Variable	Description	Variable	Description
ht	Hidden state at time t	Uf	Recurrent weight matrix between forget gates
ht-1	Hidden state at time t-1	Uo	Recurrent weight matrix between output gates
xt	Input at time t	ct	Current memory state at time t
it	Input gate vector	ct-1	Memory state at time t-1
ot	Output gate vector	ct	Internal memory state
ft	Forget gate vector	bc	Bias between t and t-1
Wc	Input weight matrix between t and t-1	bi	Bias vector for input gates
Wi	Input weight matrix between input gates	bf	Bias vector for forget gates
Wf	Input weight matrix between forget gates	bo	Bias vector for output gates
Wo	Input weight matrix between output gates	σ	Sigmoid activation function
Uc	Recurrent weight matrix between t and t-1	g	Hyperbolic activation function
Ui	Recurrent weight matrix between input gates

Similar to GRU and RNN, the same 4 inputs were fed to the LSTM model to predict the concentrations of both CO₂ and NaOH at the outlet at t= 4, 8, 12, 16 mins.

While LSTM employs more extensive gating mechanisms than GRU, enabling more effective attenuation of error propagation, it has the equivalent of 4-folds from the simple RNN model. Therefore, like GRU, the increased parameterisation may have detrimental effects on the predictive performance³⁷.

The studies that have explored NODE applications in chemical engineering applications within PIML to date are summarised in Table 4.7, with no reported applications in chemisorption systems.

Instead of a discrete sequence of hidden layers, a Neural Ordinary Differential Equation (NODE) model parameterises the derivative of the hidden state using a neural network as shown in the equation below ⁴¹. The output of the neural network is then passed to a numerical ordinary differential equation solver, such as the Runge-Kutta method. This allows the model to represent complex, time-dependent dynamics whilst constraining to physical laws through the differential equation. Compared with standard feed-forward sequence models, NODEs are natural for sparse time measurements because they learn a continuous trajectory and can be evaluated at arbitrary time points, while preserving a process-dynamics interpretation and the variables are defined in Table 4.8.

Similar to the inputs used for the RNN models, the NODE framework models the absorption of CO₂ with NaOH in the packed-bed column, where the state vector comprises the concentration of CO₂ and NaOH after a step change was introduced and the initial CO₂ and NaOH outlet concentrations at t = 0 as previously listed in Table 4.4. Thus, the neural network, f_θ(CO₂(t=0), NaOH(t=0), CO₂(i), NaOH(i)), replaces the mass transfer and reaction rate equations, and instead learns the entire absorption process dynamics directly from data. All NODE variants discussed below utilise the same inputs discussed in Table 4.4 and are also tasked with modelling the concentration trajectories of both CO₂ and NaOH at t = 4, 8, 12 and 16 min.

The learned dynamic equation captured by the neural network, f_θ , is integrated numerically to predict the concentration trajectories of each reactant, CO₂ and NaOH outlet in the latent space. As illustrated in Figure 4.6, the latent space represents the compressed, lower-dimensional internal representation that the encoder learns to capture the essential features of the input data ⁴². While it carries no direct physical meaning, the model uses it to approximate the underlying dynamics governing the concentration trajectories of CO₂ and NaOH. The predicted outlet concentrations are then passed through a decoder that maps the latent space representation back into physically interpretable concentration values.

In this study, four distinct NODE architectures are evaluated:

1. 1NODE-ED
2. 2NODE-ED-Uncoupled
3. 3NODE-Context
4. 4NODE-Context-Uncoupled

The formulation of each specific variant is discussed extensively in their respective sections below.

4.3.1

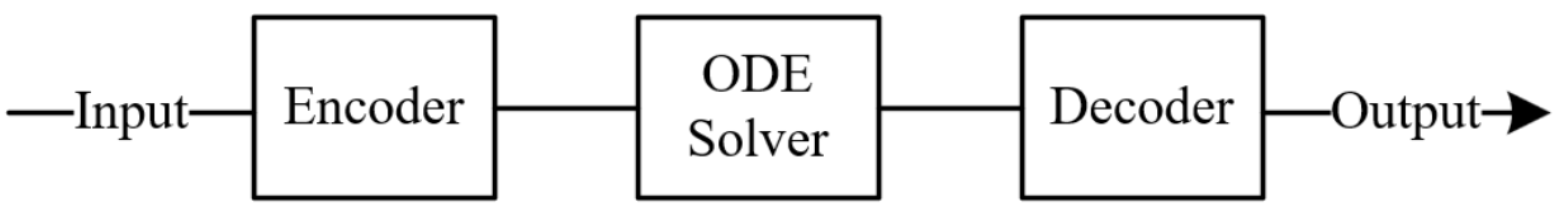

NODE-ED

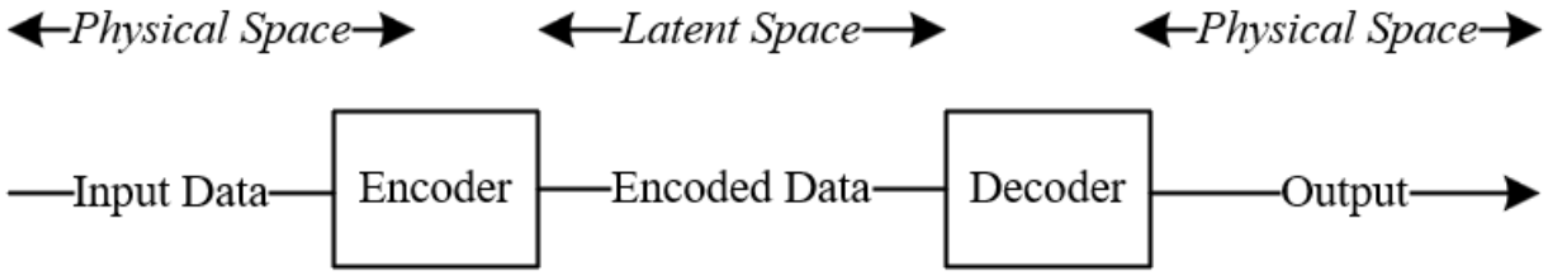

NODE-ED was selected as the base-case architecture as it represents the most direct implementation of the latent-space NODE framework introduced by Chen et al. (2018)⁴¹ and formalised for time-series prediction by Rubanova et al. (2019)⁴³. All four inputs are passed through a single shared encoder that constructs a latent initial condition, h_o from which a coupled ODE evolves the shared latent state, and a decoder maps the resulting trajectory back to physical outlet concentrations. This formulation makes no structural assumptions about how the two species should relate to one another, allowing the model to discover whichever joint dynamics best fit the data, and serves as the natural reference point against which the three variants are compared.

However, NODE-ED carries two limitations. First, as the latent trajectory has no direct physical meaning, the model cannot guarantee that the learned dynamics respect conservation laws or physically plausible concentration behaviour, a risk amplified by the sparse, noisy 30-sample dataset (Massaroli et al., 2020)⁴⁴. Second, jointly optimising both species through a single shared ODE is analogous to multi-task learning, where conflicting gradients, particularly when one task gradient is much larger in magnitude than another, can cause the dominant gradient to dictate the overall update direction and significantly degrade performance for the other task. CO₂ outlet measurements carry considerably more noise than NaOH measurements in this dataset, and unbalanced backpropagated gradients arising from outputs with different signal-to-noise characteristics represent a fundamental mode of failure in scientific machine learning models trained on noisy data.

4.3.2

NODE-ED-Uncoupled

As a consequence of noisy CO₂ dominating the loss function, the NODE-ED-Uncoupled was investigated as a directed test of whether isolating the gradient pathways between species, while still preserving the shared information channel through the common encoder input, can yield more stable and accurate learning than the NODE-ED.

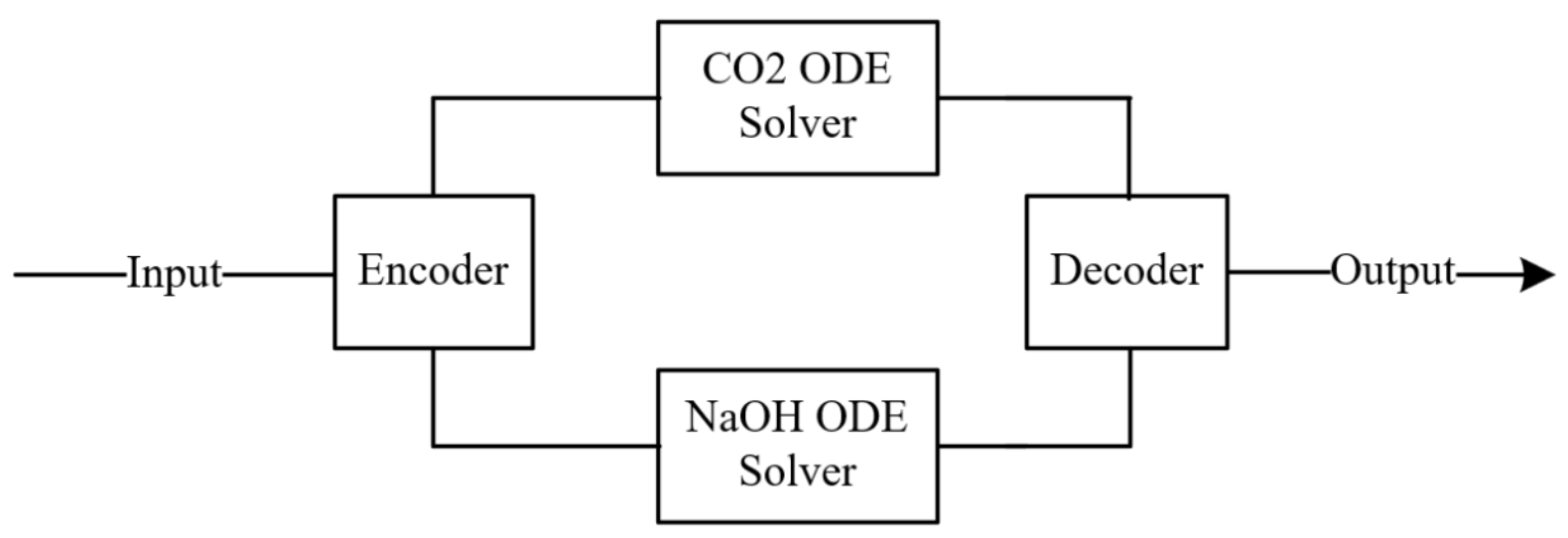

NODE-ED-Uncoupled retains the full encoder-decoder structure of NODE-ED but replaces the shared ODE solver with two fully independent ODE solvers, one for each species:

dh_NaOH(t) dt = f_θ1(h_NaOH, t), dh_CO₂(t) dt = f_θ2(h_CO₂, t)

Both pipelines receive the identical four-input vector as input to their respective encoders, ensuring that each species has access to the full system state. However, since each species evolves through a separate latent space with independent parameters θ₁ and θ₂, gradients from the CO₂ loss do not flow into the NaOH ODE parameters and vice versa. Massaroli et al. (2020)⁴⁴ established a general system-theoretic NODE formulation and demonstrated that design choices about how state dimensions interact fundamentally shape the quality of the learned dynamics. The physical coupling between NaOH consumption and CO₂ absorption is therefore encoded implicitly through the shared inputs rather than explicitly through a shared ODE state. It is therefore hypothesised that the benefit of gradient isolation outweighs the cost of removing direct state coupling under these data conditions.

4.3.3

NODE-Context

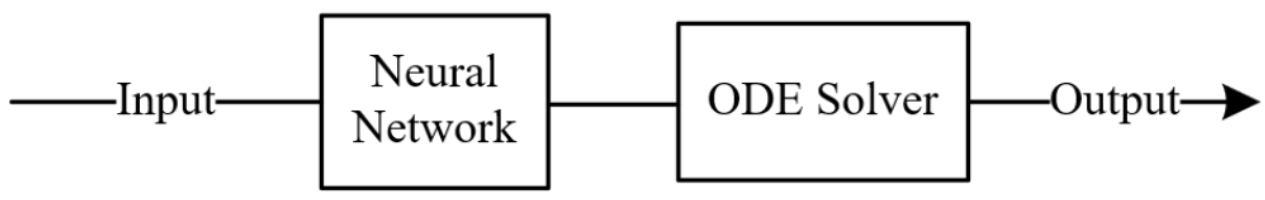

While NODE-ED and NODE-ED-Uncoupled both operate in the latent space, the latent space has no direct physical interpretation and there is no guarantee that the dynamics learned in latent space corresponds to physically possible concentration trajectories. Consequently, the architecture NODE-Context-Coupled was developed to investigate a more physically grounded alternative.

Rather than operating in an abstract latent space, the model integrates directly in physical concentration space, using the measured outlet concentrations at t=0 as the true starting point of the ODE. The new inlet conditions are separately compressed into a conditioning signal that informs how the dynamics should evolve under the new operating conditions.

4.3.4

NODE-Context-Uncoupled

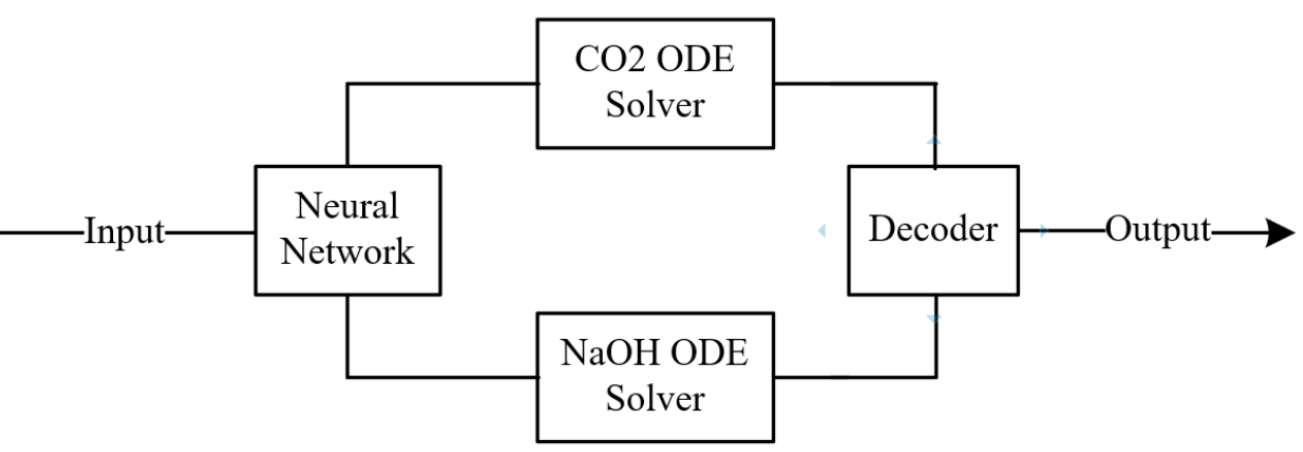

While NODE-Context restores physical interpretability, it reintroduces the coupled-gradient issue identified in NODE-ED, now in physical concentration space rather than latent space. As both CO₂ and NaOH outlet concentrations are evolved through a shared two-dimensional ODE, the same cross-species gradient interference is expected to persist. NODE-Context-Uncoupled was therefore investigated as the final variant, combining physical-space integration with species-level gradient isolation to test whether this pairing produces the most favourable inductive bias across both design considerations.

For the purpose of this study, two performance metrics are employed: the coefficient of determination, R² and mean squared error, MSE. The use of both metrics provides complementary insights into model performance. R² evaluates the model's ability to explain the variance in the data, while MSE quantifies the magnitude of prediction errors in absolute terms. Together, they enable a more comprehensive assessment by capturing both goodness-of-fit and prediction accuracy. The following metrics are defined below:

Statistical significance testing was then conducted to ascertain whether the observed performance differences among the models are statistically meaningful, thereby distinguishing true performance from stochastic variability. Given that the models were trained across 100 fixed (Section 4.5.3 & 4.5.4), randomly generated seeds, in accordance with the Central Limit Theorem (CLT)⁴⁵, as the number of independent experimental runs increases beyond 30 samples, the sampling distribution of the sample mean asymptotically approaches normality, irrespective of the underlying population distribution. This property hence permits the assumption of approximate normality for aggregated performance estimates, thereby justifying the use of parametric inference procedures such as the t-test for model comparison. The t-test assesses whether the sample means of the two models of interest differ significantly under the assumption of normality ⁴⁶.

where,
x^'_d : Mean of the sample
μ_d : Expected mean
s_d : Standard deviation
n : Number of observations

The null and alternative hypotheses are defined as follows:

Null hypothesis, H0: There is no statistically significant difference between the performance metric Q of the two models.

Alternative hypothesis, H1: There is a statistically significant difference between the performance metric Q of the two models.

where ,
Q represents the chosen performance metric, R2 or MSE

The hypotheses were evaluated at a 95% confidence level (α = 0.05), whereby results with p < 0.05 indicate statistically significant difference and hence rejecting the null hypothesis.

However, statistical significance alone is insufficient to fully characterise model performance differences, particularly in large sample settings where even marginal effects may yield statistically significant p-values. To address this limitation, Cohen's d was additionally computed as a standardised effect size measure to quantify the magnitude of performance differences independently of sample size. It is defined as follows with the associated performance listed in Table 4.11:

where,
μ₁ : mean of first model
μ₂ : mean of second model
s₁ : standard deviation of first model
s₂ : standard deviation of second model

To train the models defined in the previous section, a fixed training pipeline was adopted, as outlined in Figure 4.11. Each segment of the training procedure will be discussed extensively in their respective sections: Hyperparameter Optimisation (Section 4.5.1), 100 K-Fold Cross Validation (Section 4.5.3) and Bagging (Section 4.5.4).

4.5.1

Hyperparameter Optimisation

Prior to training each model, the optimal set of the following hyperparameters was obtained via Optuna⁴⁷, a Python-based optimisation library:

1. 1Number of neurons
2. 2Number of layers
3. 3Dropout
4. 4Learning rate
5. 5Weight decay
6. 6Maximum number of epochs

Optuna enables the exploration of complex search spaces through adaptive and probabilistic sampling strategies, whereby subsequent hyperparameter selections are informed by the outcomes of previous trials rather than being restricted to a predefined set of values. It primarily employs Bayesian optimisation to guide the search toward promising regions of the parameter space. Additionally, Optuna includes pruning mechanisms, which terminate poorly performing trials early to reduce unnecessary computational cost.

Based on Figure 4.13, the model training procedure was conducted under a fixed random seed to ensure consistency across 50 Optuna trials^{^3}. For each trial, a distinct set of hyperparameters proposed by Optuna was evaluated using K-fold cross-validation (K = 5). R² was computed on the validation fold and averaged across all five folds to obtain the performance metric for each trial. The set of hyperparameters corresponding to the trial with the highest average R² was then selected as the optimal configuration for subsequent training.

4.5.2

K-fold Cross-validation

In K-fold cross-validation, a dataset of N samples is partitioned into K roughly equal, non-overlapping subsets (folds). For each iteration k = 1, … , K, fold k is held out as the test set while the remaining K-1 folds are used for training. The model is trained from scratch on the training partition and evaluated on the held-out fold, yielding the test metrics, R² and MSE. After all K iterations every sample has been used for testing exactly once (Kohavi, 1995)⁴⁸. Compared to a single hold-out split, K-fold provides a less biased and lower-variance estimate of generalisation error because every observation contributes to both training and evaluation (Hastie et al., 2009, Ch. 7)⁴⁹.

The overall performance estimate is then:

4.5.3

100 repeated K-fold

Following hyperparameter optimization, the K-fold cross-validation procedure was repeated across 100 trials on different random seeds using the previously obtained best hyperparameters. Compared to a single K-fold pass, repeated K-fold provides a more reliable and less variable estimate of model's generalisation performance, particularly when the number of the data points available is limited⁵⁰. By varying the random seed across the repeated K-fold, the model is exposed to a wider range of possible training-testing data splits and thus reduces the sensitivity of the performance estimate to any particular split composition. The R² and MSE obtained from each repeated K-fold were then averaged to obtain the overall performance across 100 trials. The choice of 100 trials is rooted in the Central Limit Theorem (CLT), which was discussed earlier in Section 4.4. Subsequently, the averaged performance metric of each model undergoing the 100 repeated K-fold was compared to determine the best performing model.

4.5.4

Bagging

After the selection of a model via the 100 repeated K-fold, 100 bagging trials were also applied to enhance the predictive performance. Bagging, short for Bootstrap Aggregating, is an ensemble learning technique introduced by Breiman (1996)⁵¹ that reduces model variance and improves prediction stability by training multiple models on different samples generated from the 80% training split using sampling with replacement and the remaining 20% of the data was used for testing. Predictions from the individual models were then averaged to obtain the final mean R² and MSE.

While repeated K-fold is used for model evaluation, bagging solely is employed to improve the performance of the model's prediction by averaging out the variability that any single model carries due to the noisy, limited dataset available. Similar to 100 repeated K-fold, the selection of 100 bagging trials is motivated by the CLT (Section 4.4).

As shown in Table 4.10, both GRU and LSTM outperform RNN in terms of both R² and MSE for 100 repeated K-fold evaluations at 0.687 ± 0.107 and 0.237 ± 0.026 respectively. Furthermore, statistical tests presented in Table 4.11 confirm the differences in model performance are not attributed to chance. The p values for R² and MSE was observed at 2.831 x 10^-14 and 1.082 x 10 ^-38 with large effect size of Cohen's d value of 0.889 and 2.13 respectively when comparing GRU and RNN. Meanwhile, the p values for R² and MSE were observed at 3.813 x 10^-10 and 1.207 x 10^-20 with a large effect size of Cohen's d value of 0.696 and 1.18 respectively when comparing LSTM and RNN. This suggests that sensitivity to temporal perturbations is a dominant factor such that the ability of gated architecture to regulate the sensitivity of information flow outweighs the increased parameterisation disadvantages.

To contextualise this sensitivity, Figure 4.16 presents the temporal trajectories of a representative dataset. As observed, both NaOH and CO₂ exhibit a sharp increase in concentration following a step change in inlet conditions. This behaviour is consistent with the mass transfer-reaction dynamics of chemisorption columns, where such perturbations generate a propagating adsorption front, giving rise to characteristic sigmoidal breakthrough profiles. This is more pronounced under conditions where reaction rates dominate over mass transfer. In these regimes, such rapid outlet transients are commonly observed as reported in literature as well⁵², ⁵³.

The presence of such steep gradients hence implies that the system response is highly sensitive to temporal misalignment. Small deviations in predicted dynamics such as slightly earlier or later, corresponds to a shift and hence disproportionately large overprediction or underprediction at subsequent time steps. As such, models that accumulate errors over time such as RNN are more susceptible to such amplification.

Another point of interest is the presence of higher measurement noise in the CO₂ data compared to NaOH. This is consistent with chemical engineering systems, where gas-phase concentration measurements are often subject to sensor noise particularly in dynamic operating conditions⁵⁴. In contrast to RNN, GRU and LSTM gated mechanisms likewise regulate information flow, which allows the model to selectively attenuate spurious variations⁵⁵. This is further validated in Table 12, where the improvement in CO₂ prediction based on noisy data relative to RNN is more pronounced for GRU and LSTM at 7.2% and 5.4% respectively as compared to the improvement for NaOH on more stable data at around 2-3%.

Comparing GRU and LSTM, no statistically significant difference is observed in the R² values as indicated in Table 4.12, suggesting that GRU, despite its reduced parameterisation achieves comparable performance to LSTM. As such, the simpler GRU model is selected as the best RNN variant moving forward.

Subsequently, a bagging ensemble of 100 models was trained on bootstrap resamples of the training fold and evaluated on a fixed held-out test set to characterise the stability of the GRU model. As shown in Table 4.13, the bagging ensemble achieved a higher mean R² of 0.735 ± 0.090 and a mean MSE of 0.268 ± 0.119. The reduction in variance is intrinsic to bagging, wherein averaging predictions across multiple independently trained models suppresses the sensitivity of any single model to the specific samples on which it was trained.

As shown in Table 4.14, the best performing NODE variant in terms of both R² and MSE for 100 repeated k-fold evaluations is NODE-ED-Uncoupled with 0.689 ± 0.101 and 0.245 respectively. NODE-ED followed closely with a R² OF 0.664 ± 0.107 and a MSE of 0.265. On the other hand, variants developed in the physical-space consistently underperformed, with NODE-Context having the lowest R² of 0.561 ± 0.142 and the highest MSE of 0.333, while NODE-Context-Uncoupled achieved a substantially higher R² of 0.626 ± 0.120 and a MSE of 0.289.

Furthermore, statistical tests conducted in Table 4.15 confirm the difference in model performance is not attributed to chance. All pairwise comparisons have yielded p-values well below the threshold of 0.05, suggesting strong evidence of the claim of a model's performance over another. For example, the p-value of R² performance between NODE-ED-Uncoupled and NODE-Context-Coupled is the lowest of all R² pairwise comparison at 6.56 x 10^-32.

Additionally, Cohen's d was evaluated to meaningfully quantify the difference in model's performance. Between NODE-ED and NODE-ED-Uncoupled, the improvement gained via the uncoupled structured has only yielded a moderate Cohen's d of 0.684 for R², highlighting that the improvement from decoupling within the latent space is a modest improvement, albeit statistically significant. However, between NODE-ED and NODE-Context-Coupled, Cohen's d is extremely large at 1.308 for R². Similarly, between NODE-ED-Uncoupled and NODE-Context-Uncoupled, Cohen's d has a large effect of 1.034. These results confirm that the latent-space formulation variants, NODE-ED and NODE-ED-Uncoupled, substantially outperforms direct physical-space integration.

Overall, the results for the comparison of NODE variants highlight two key findings.

Firstly, across both coupled and uncoupled configurations, the latent-space variants consistently outperforms their physical-space counterparts, which provides strong support for the encoder-decoder structure. As mentioned in the methodology, the latent ODE encoder is an inference model that is able to provide a more comprehensive initial condition from the input data than the direct physical measurements could. The outlet concentration at t = 0 is a boundary measurement that does not fully characterise the internal concentration profile along the column height at the moment of the step change. As such, the physical-space variants are forced to integrate directly from this incomplete initial condition, producing a systematically biased starting point that propagates error throughout the trajectory. On the other hand, the encoder in the latent-space variants constructs a learnt initial condition that absorbs this incompleteness, providing a more representative starting point for the ODE integration⁵⁶.

Secondly, similar to the performance of GRU over RNN, the uncoupled variants outperform their coupled variants due to the issue of gradient conflict arising from the noisy data CO₂. When NaOH and CO₂ are predicted through a shared ODE, the training is equivalent to a multi-task learning problem with two outputs of unequal noise levels. When task gradients differ significantly in magnitude, the larger gradient, in our case CO₂, dominates the training performance of the models and hence degrades the performance of NaOH⁵⁷. The uncoupled variants resolve this issue by assigning independent ODE solvers to each species, such that the training of CO2 and NaOH does not adversely affect one another. Additionally, since both ODE solvers receive the same encoder output, there is no information loss through the decoupling architecture.

The best overall performance of NODE-ED-Uncoupled is therefore the natural consequence of combining both advantages simultaneously and hence is chosen as the best NODE variant.

Subsequently, to further characterise the stability and uncertainty of NODE-ED-Uncoupled, a bagging ensemble of 100 models was trained on bootstrap resamples of the training fold and evaluated on a fixed held-out test set. As shown in Table 4.16, the bagging ensemble achieved a mean R² of 0.765 ± 0.0800 and a mean MSE of 0.241 ± 0.106. The ensemble prediction represents a substantial improvement over the repeated K-fold mean of 0.689, which is to be expected as ensemble averaging reduces only the prediction variance, thereby yielding a more accurate and stable mean prediction.

The repeated K-fold evaluation revealed that GRU and NODE-ED-Uncoupled achieved comparable performance across both R² and MSE. GRU recorded a mean R² of 0.687 ± 0.107 and a MSE of 0.237 ± 0.026, while NODE-ED-Uncoupled achieved a mean R² of 0.689 ± 0.101 and a MSE of 0.245 ± 0.036. The paired t-test confirms their statistical similarity as the R² comparison resulted in a not significant p-value of 0.612. Notably, the MSE comparison had resulted in a statistically significant difference with a p-value of 1.19 x 10^-5, favouring GRU. However, Cohen's d yielded a small effect of 0.461, suggesting the practical magnitude of the MSE gap is limited. Collectively, the near identical performance metric between the models is insufficient to discriminate between the better performing model.

Consequently, a bagging ensemble of 100 bootstrap models was constructed for each model and evaluated on a fixed held-out test set. Under bagging, NODE-ED-Uncoupled achieved a greater mean R² of 0.765 ± 0.080 against GRU's 0.735 ± 0.090, and a lower MSE of 0.241 ± 0.106 against GRU's 0.268 ± 0.119. Furthermore, the statistical tests confirm both differences are significant, with a p-value of 4.06 x 10^-5 for R² and p = 3.95 x 10^-4 for MSE, and Cohen's d values of 0.430 and -0.367 respectively, indicating small to moderate effect sizes in favour of NODE-ED-Uncoupled.

The difference in results between repeated K-fold and bagging can be attributed to how each model handles variability within the training data. GRU, with its gating mechanism and simpler architecture, allows for greater flexibility during training⁵⁸. However, this flexibility may incur higher learning variance, causing favorable training splits to work well with GRU but also unfavorable splits to degrade its performance. On the other hand, NODE-ED-Uncoupled's latent encoder and decoupled ODE pathways act as an implicit regulariser that stabilises learning across different data compositions⁵⁹. Therefore, when the train-test partition is fixed under bagging and only the bootstrap resampling changes, NODE-ED-Uncoupled does not require a lucky data split to perform well and hence outperforms GRU.

Overall, albeit a moderate improvement in performance, NODE-ED-Uncoupled is the superior model of the two based on the performance metric obtained through bagging 100 models due to its reliability in performance over different training samples for a fixed test set. Consequently, NODE-ED-Uncoupled is chosen as the base model in which different variations of physics integration shall be implemented in the next section.

To examine the current limitations of the NODE-ED-Uncoupled model, the corresponding R² for both training and testing of CO₂ and NaOH, as presented in Table 4.21, were analysed.

The results showed that CO₂ test performance remains inferior to that of NaOH, with an approximate 21% reduction in predictive capability, despite comparable training R² values. The discrepancy is likely attributed due to the higher noise associated with CO₂ measurements, suggesting that NODE-ED-Uncoupled still has limitations in distinguishing noise from the underlying physical dynamics.

Two plausible explanations are proposed. First, NODE-ED-Uncoupled may fail to accurately capture the correct final state. In the presence of noisy measurements, sudden fluctuations during earlier timestamps may be misinterpreted as meaningful signals, causing the model to converge towards an incorrect final state and hence learning the wrong trajectory as a whole.

Second, the limited availability of experimental data may restrict the model's ability to learn the full range of interactions between the different reaction zones described in Section 2.2.1. Although LHC was employed to improve coverage of the operating space, certain regimes such as SRZ still remain overrepresented while others such as PAZ are underrepresented due to their rare occurrence only under boundary conditions. This imbalance may therefore hinder the model's ability to generalise across all operating regimes. As such, Section 5 explores physics-guided enhancements aimed to address these hypotheses.
